#include <esp_now.h>
#include <esp_wifi.h>
#include <WiFi.h>

Include dependency graph for espnowsimple.h:

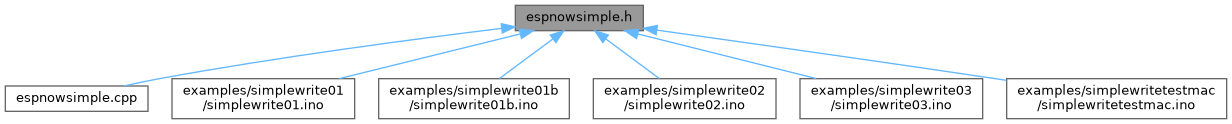

This graph shows which files directly or indirectly include this file:

Data Structures
struct	espNowSimplePkg

Macros
#define	ESPNOW_SIMPLE_DATA_LGT 100

Functions
void	espSimpleNowCallbackBinRcvd (const uint8_t *data, int len)
void	espSimpleNowCallbackDataSent (const bool success)
uint8_t	espSimpleNowInit (uint8_t macAddrLastByte)
void	espSimpleNowSetMacAddr (uint8_t mac[6])
void	espSimpleNowGetMacAddr (uint8_t mac[6])
uint8_t	espSimpleNowBroadcastData (char *data, uint16_t len)

Variables
esp_err_t	espNowSimpleErr
uint8_t	espSimpleNowRunning

Macro Definition Documentation

◆ ESPNOW_SIMPLE_DATA_LGT

#define ESPNOW_SIMPLE_DATA_LGT 100

Definition at line 24 of file espnowsimple.h.

Function Documentation

◆ espSimpleNowBroadcastData()

uint8_t espSimpleNowBroadcastData	(	char *	data,
		uint16_t	len )

Simple binary data tx NB max size 250Byte pls use max 249 just to be sure

Returns: 1: well.

Definition at line 130 of file espnowsimple.cpp.

References broadcastMAC, and espSimpleNowRunning.

Referenced by txTest().

Here is the caller graph for this function:

◆ espSimpleNowCallbackBinRcvd()

void espSimpleNowCallbackBinRcvd	(	const uint8_t *	data,
		int	len )

The callback you shall implement as to get data

void espSimpleNowCallbackBinRcvd(const uint8_t *data, int len) { your code }

the receiving function just copy the received package to local storage You might do it better by implementing a buffer system

Definition at line 33 of file espnowsimple.cpp.

References arSize, rxCount, rxData, rxPkg, rxPkg2, and txData.

Referenced by internalDataReceivedCallback().

Here is the caller graph for this function:

◆ espSimpleNowCallbackDataSent()

void espSimpleNowCallbackDataSent ( const bool success )

The callback you shall implement as to check if data has been send NB esp now do not guarantee if data is received in same order as you did tx - ifff you are heavily loading the system

void espSimpleNowCallbackDataSent(const bool success) { }

to check if data has been send to get data

Definition at line 34 of file espnowsimple.cpp.

Referenced by internalDataSentCallback().

Here is the caller graph for this function:

◆ espSimpleNowGetMacAddr()

void espSimpleNowGetMacAddr ( uint8_t mac[6] )

you can get current mac addr

Returns: 1: hej

Definition at line 148 of file espnowsimple.cpp.

References broadcastMAC.

Referenced by testMacAddr().

Here is the caller graph for this function:

◆ espSimpleNowInit()

uint8_t espSimpleNowInit ( uint8_t macAddrLastByte )

change last byte in MAC to To used for broadcast See esp now library NB parm must not n´edn on 1,3,5,7 (decimal) or just lsb bit must not be 1 return: -1 if macaddressbyte i odd - must be even (lsb bit0 ==0) rest of err codes comes from call to initESPNowMac 1: esp_wifi_sec_mac failed 2: esp_now_init failed 3: esp_wifi_set_protocol failed 4: esp_now_register_send_cb failed 5: esp_now_register_recv_cb failed 6: esp_now_add_peer failed

espNowSimpleErr (of type esp_err_t) holds the actual errorcode

Definition at line 114 of file espnowsimple.cpp.

References broadcastMAC, initESPNowMac(), and setMacAddr().

Referenced by setup().

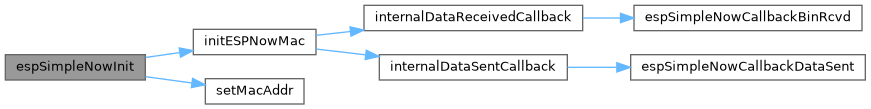

Here is the call graph for this function:
